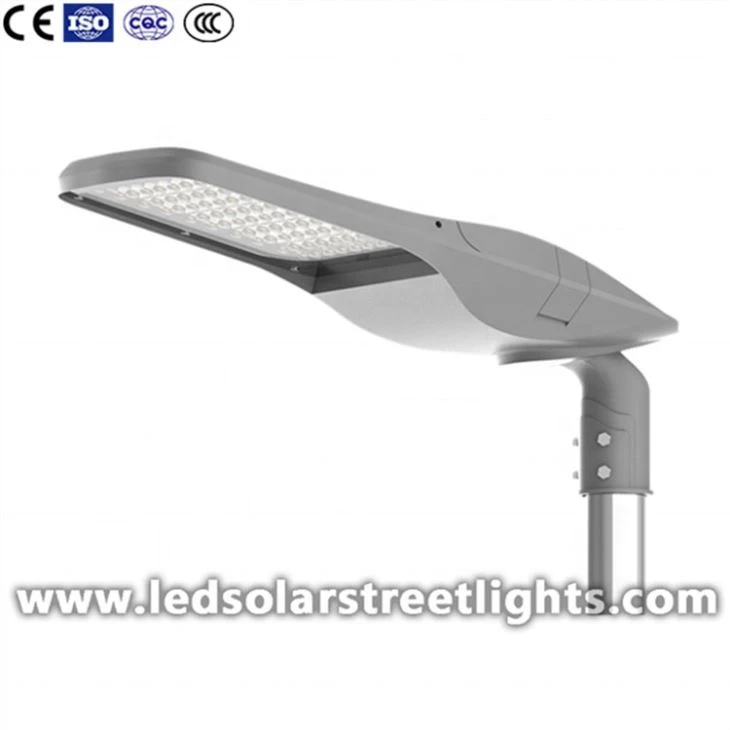

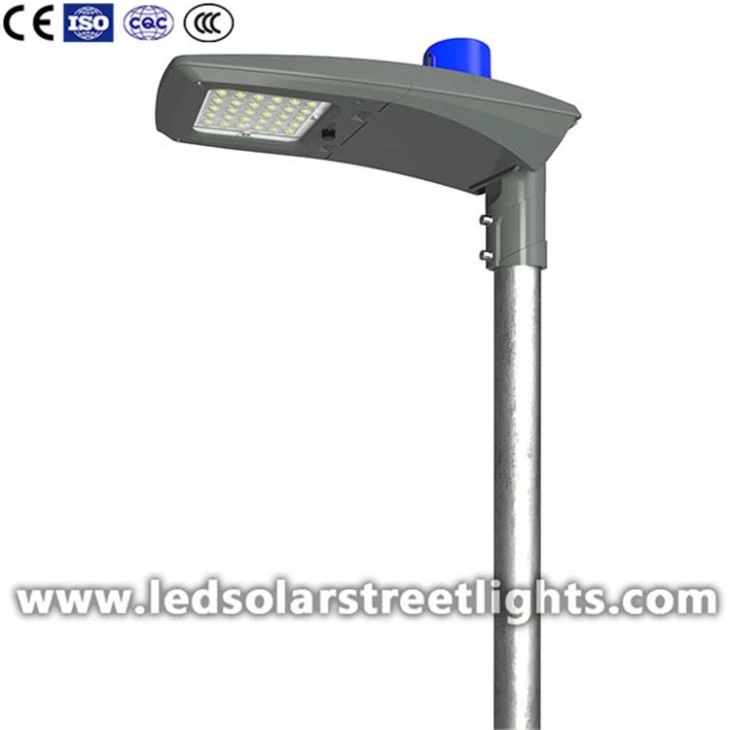

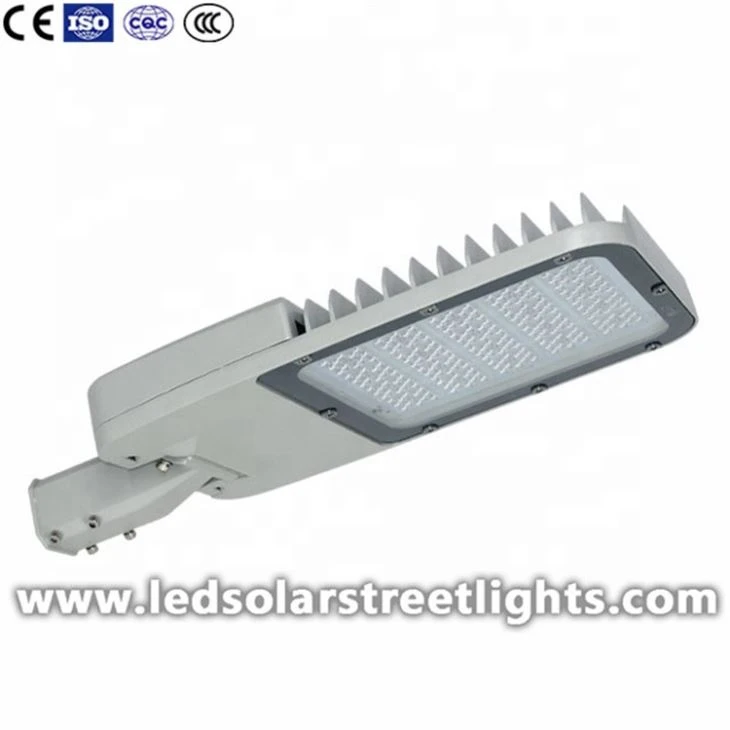

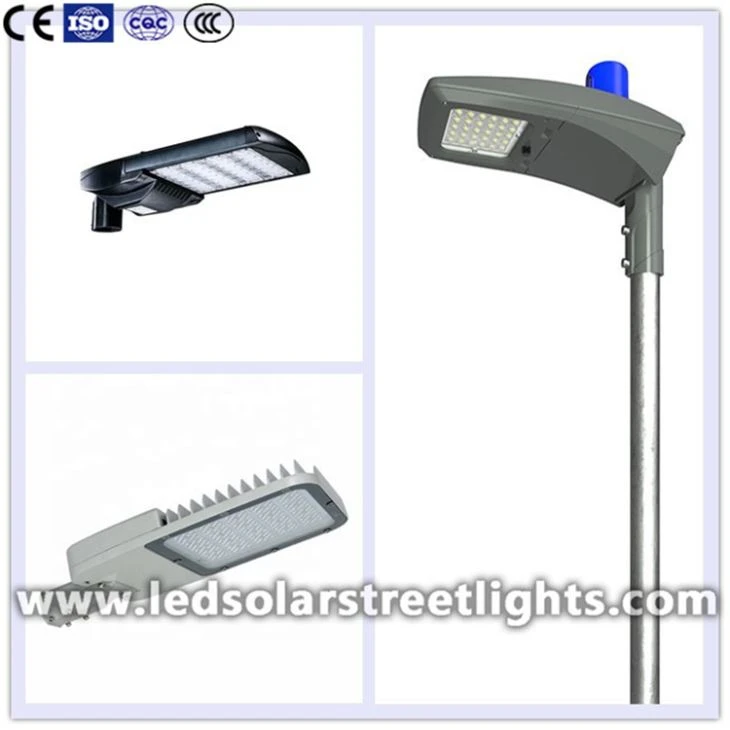

1. Khoom Taw Qhia
Led txoj kev teeb pom kev zoo yog tsim los rau cov kev hauv nroog, txoj kev hauv nroog, cov choj, cov vaj tsev nyob, cov chaw ua si, cov chaw nres tsheb thiab lwm qhov chaw uas xav tau rau siab - brightness dav illumination thaum hmo ntuj. Led txoj kev teeb pom kev zoo siv high purity aluminium cov ntaub ntawv, yog li nws zoo nkauj heev, tsis tsuas yog zoo nkauj tab sis kuj muaj ib tug tej yam kub dissipation nyhuv. Tus nqi ntawm kev siv yog tsawg.
LED txoj kev teeb pom kev zoo tsim hluav taws xob txuas nrog lub teeb vaj tsev, yog li qhia qhov kev cia siab nyob rau hauv kev sib tshuam ntawm cov cua sov dissipation. Los ntawm qhov kev pom no, qhov kub ntawm lub teeb tuaj yeem txo qis heev.
2. Khoom Parameter (specification)

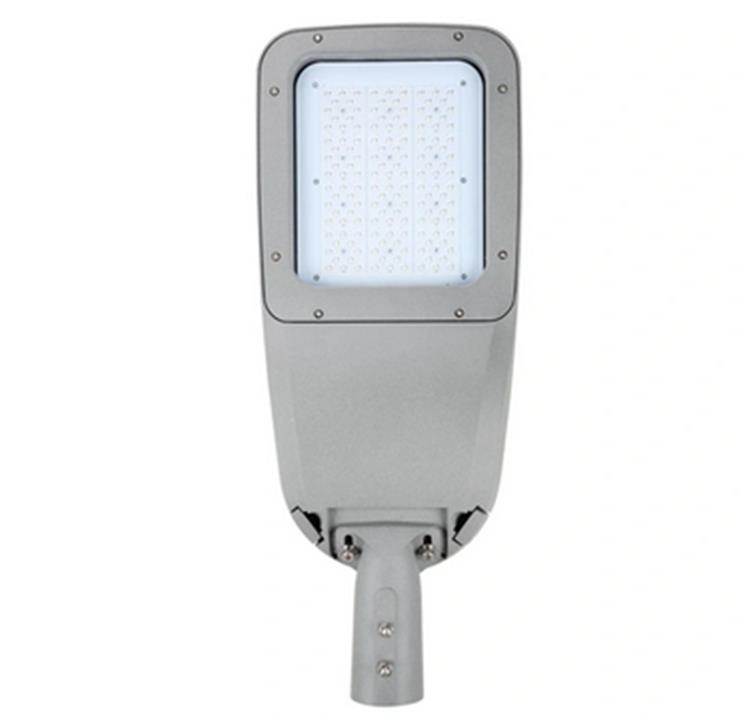

Parameters ntawm LED teeb
Teeb | Hwj chim | 30-250W / Customized |
LED Hom | Lumileds / Refond SMD3030 | |
Luminous Efficiency | >150 Lm / W | |
LED ntsuas Luminous Efficiency | ≥130lm/W | |
CCT (K) | 3000K / 4000K / 5000K / 5700K / 6500K | |
CRI | >Ra 80 | |
Fais fab mov | Meanwell / Sosen UL TUV CE Tsav Tsheb | |
Lifespan (Hrs) | >50,000 teev | |
Hluav taws xob | Input voltage (V) | 100-277VAC 50/60Hz |
Photocell | Photocell tswj kev xaiv | |
Fais fab xwm txheej | >0.95 | |
IP qib | IP66 waterproof | |
Qauv | Khoom siv | Tuag casting Aluminium vaj tse + optical PMMA lens + tempered iav |
Qhov hluav taws xob cable | 3 cores kab | |
Kev teeb tsa | Nrog adjustable caj npab mounting | |

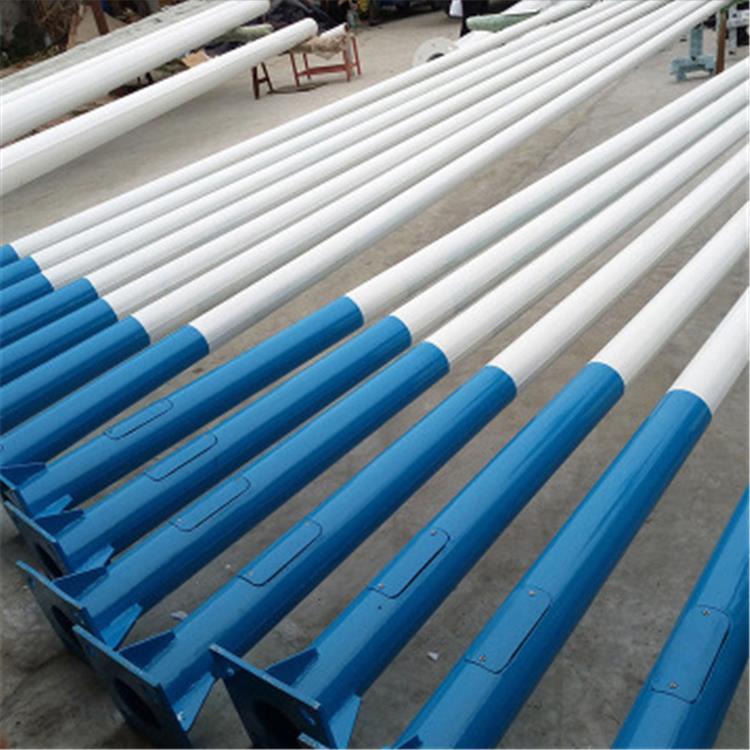

Parameters ntawm Txoj Kev Teeb ncej
Ncej qhov siab | 3m mus 15m |
Tus ncej | Hloov conical; Octagonal tapered; Ncaj square; Tubular stepped; |
Brackets / caj npab | Ib qho los yog ob lub brackets / caj npab yog nyob rau hauv cov duab thiab qhov ntev raws li cov neeg siv khoom xav tau |
Ntev | Tsis pub dhau 14m ib zaug tsim yam tsis muaj kev sib koom ua ke |
Phab ntsa thickness | 2.5mm txog 20mm |
Vuam | Nws tau dhau los ua qhov tsis zoo. Sab hauv thiab sab nraud ob chav vuam ua rau cov vuam zoo nkauj zoo nkauj. |
Kev sib koom ua ke | Kev sib koom ntawm tus ncej nrog hom ntxig, sab hauv flange hom ntsej muag rau lub ntsej muag sib koom ua ke. |
Base phaj mounted | Lub hauv paus phaj yog square lossis round nyob rau hauv cov duab nrog slotted qhov rau thauj tog rau nkoj ntsia liaj qhov rooj thiab dimension raws li ib tug neeg yuav tsum tau. |
Hauv av mounted | Qhov ntev faus underground raws li cov neeg siv khoom xav tau. |
Galvanizing | Kub dip galvanization nrog thickness ntawm 80-100µm nruab nrab raws li Suav standard GB / T 13912-2002 los yog American standard ASTM A123, IS: 2626-1985. |
Hmoov txheej | Ntshiab polyester hmoov pleev xim, xim yog xaiv raws li RAL Xim tus qauv. |
Cua Resistance | Tawm tsam cua siab ntawm 160Km / h |

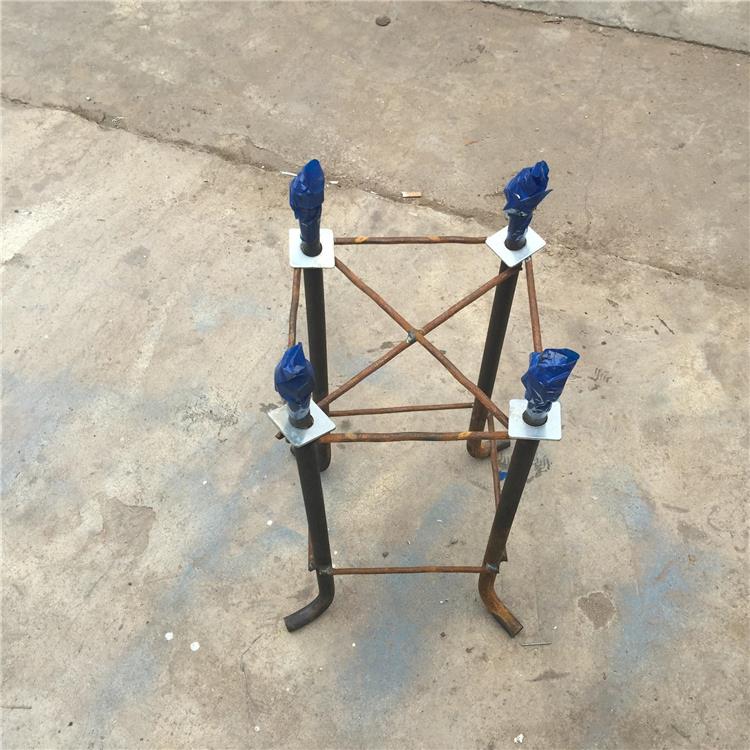

Parameters ntawm Anchor Bolt
Khoom siv | Q235 Hlau |
Bolts thiab txiv ntseej khoom | Stainless hlau |
Galvanizing | Txias dip galvanized txheej txheem (yeem) |
Nta | Detachable, pab txuag chaw thauj thiab nqi |
Cov kev teeb tsa saum toj no tsuas yog siv rau kev siv thiab qhov tseeb configuration yog tsim los raws li kev nyab xeeb hauv zos thiab cov neeg siv khoom tshwj xeeb.
3. Khoom feature thiab daim ntawv thov
1. Tuag casting txhuas vaj tse, yooj yim style, txuag freight nqi & yooj yim installation;
2. Super ci: 150Lm / W siab lumens efficiency; lub zog txuag zoo tshaj plaws;
3. Kev tiv thaiv ntsuab thiab ib puag ncig: Tsis muaj txhuas, tsis muaj mercury, tsis muaj kuab paug ib puag ncig.
4. Hollow Out Heat Sink Design ua rau lub teeb ci dua thiab zoo dua thaum tshav kub kub
5. Lub neej ntev, tsis xav tau kev saib xyuas ntau zaus
6. Txais cov neeg tuag zoo- nrum txhuas vaj tse ntse tiv thaiv cov plua plav thiab cov daus los ntawm kev sib sau ntawm lub tsev yog li zoo dua cua sov dissipation thiab lub neej ntev dua..

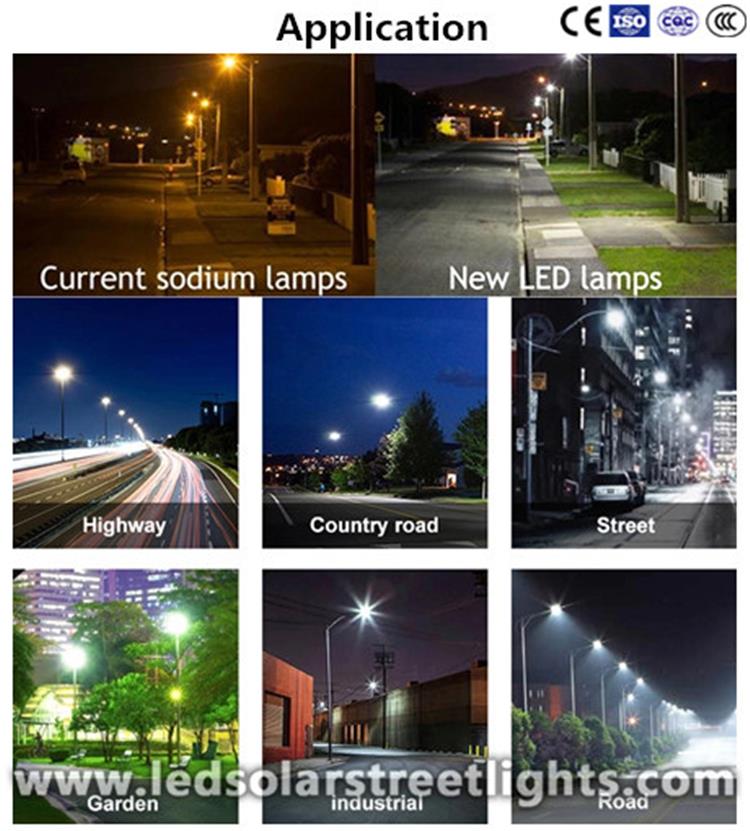

Nws yog dav siv rau hauv nroog txoj kev lag luam thaj chaw, thaj chaw nyob, kev taug kev, chaw nres tsheb, lub vaj, Txoj Kev, chaw ua si thiab lwm yam.
4. Cov lus qhia ntau lawm

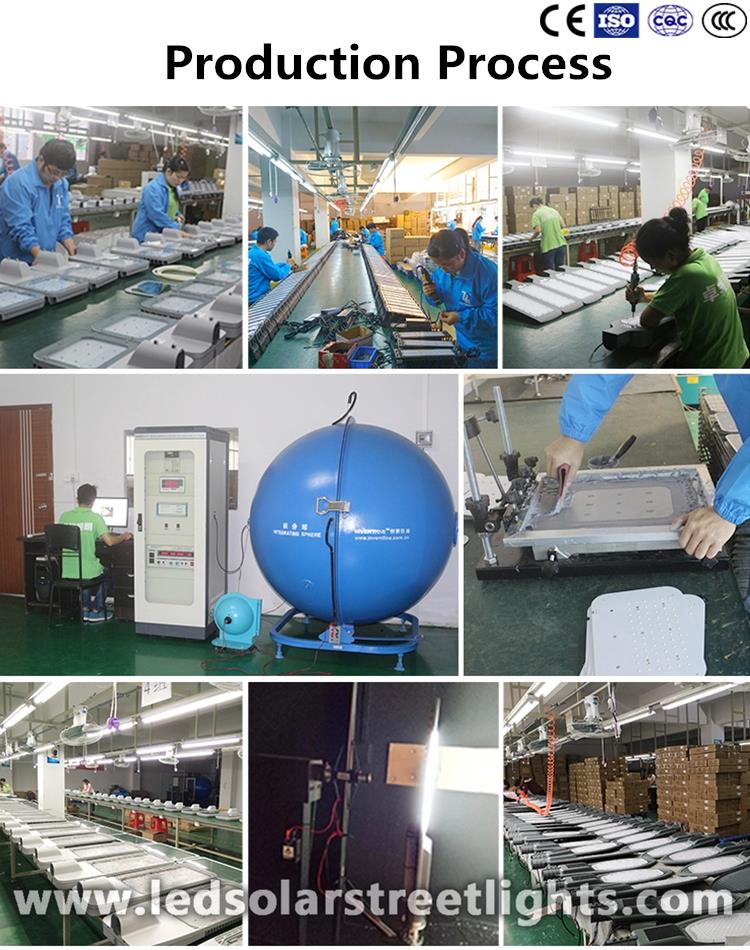

5. Cov txheej txheem ntau lawm
6. Kev xa khoom, kev xa khoom thiab kev pabcuam
7. FAQ:
Q1. Koj puas tuaj yeem tsim raws li cov qauv?
A: Yog lawm, peb tuaj yeem tsim los ntawm koj cov qauv lossis cov duab kos duab. Peb tuaj yeem tsim cov pwm thiab cov khoom siv.
Q2. Yuav ua li cas txog koj lub sijhawm xa khoom?
A: Feem ntau, nws yuav siv sijhawm 5-7 hnub tom qab tau txais koj cov nyiaj them ua ntej. Lub sijhawm xa khoom tshwj xeeb nyob ntawm cov khoom thiab qhov ntau ntawm koj qhov kev txiav txim.
Q3. Koj cov nqe lus ntawm kev ntim khoom yog dab tsi?
A: Feem ntau, peb ntim peb cov khoom hauv nruab nrab lub thawv dawb thiab cov thawv xim av. Yog tias koj muaj cai sau npe patent,
peb tuaj yeem ntim cov khoom hauv koj lub thawv ntim khoom tom qab tau txais koj cov ntawv tso cai.
Q4: Koj puas tuaj yeem ua kom meej meej rau kuv txog koj cov ntaub ntawv kev lag luam?
A: Tseeb. Thov nrhiav cov ntsiab lus hauv qab no:
Cov nqe lus them nqi: L / C, T / T, Western Union.
Kev Them Nyiaj: 30% tso nyiaj ua ntej, 70% tshuav nyiaj li cas ua ntej xa khoom lossis tawm tsam daim ntawv theej ntawm Kev Lag Luam.
Q5. Koj puas kuaj tag nrho koj cov khoom ua ntej xa khoom?
A: Yog, peb muaj 100% kuaj ua ntej xa khoom
